Continuous-Use Bag Industrial Dust Collector

TS

Continuous-use bag industrial dust collectors use a dual filtration system and a pre-cyclone separator to filter >98% of dust intake. They also contain standard imported polyester fiber coated filter barrels and pulse back-blowing dust cleaning systems.

The Maxpka MTS-70/MTS-80 continuous-use bag industrial dust collector is suitable for continuous work with large amounts of small dust particles. They are ideal for use during floor grinding and shot blasting work.
Contact Us

MTS-70/MTS-80 Continuous Bag Industrial Dust Collector

Detailed specifications:

1. The power system comprises a high negative-pressure turbine fan. It operates with wide pressure dual-frequency, high reliability, low noise, long life, and can work continuously for 24 hours.

2. Made with a full set of Schneider electrical components with overloading, overheating, and short circuit protection.

3. The continuous bagging structure makes loading and unloading quick and easy. The bag is made of a tube-packed plastic bag that can be continuously pulled. After the dust has been collected, the bag is sealed with a cable tie.

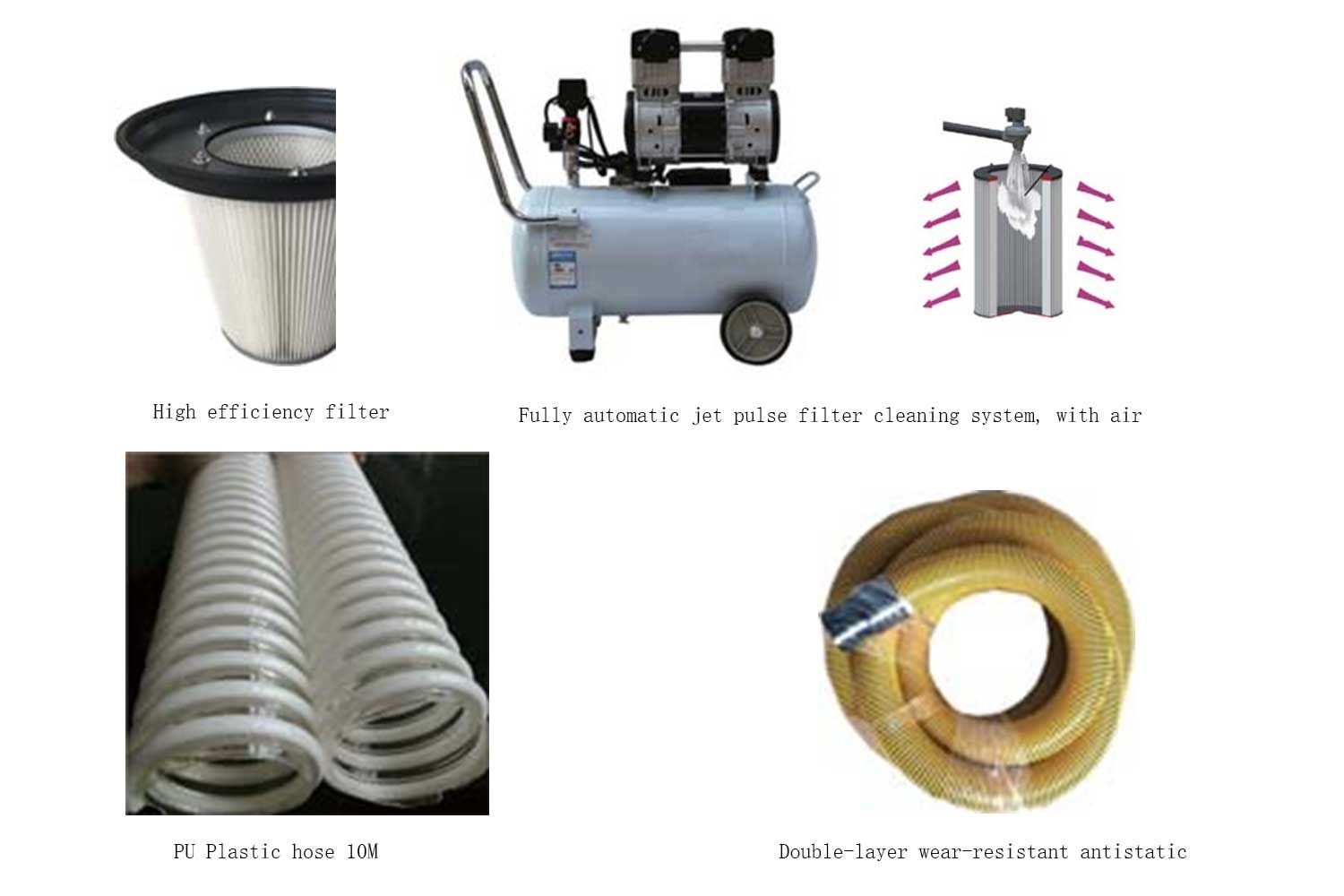

4. Comes with an imported polyester fiber coated filter bucket for small pressure loss and high filtration accuracy,

5. The fully automatic jet pulse filter cleaning system, along with the air compressor, makes it easy to face challenging working conditions.

Model	TS70	TS80
Voltage (V/Hz)	Three phase 380V 50Hz	Three phase 480V 60Hz
Power (kw)	7.5kw	8.6kw
Vacuum (mBar)	320	350
Airflow (m³/h)	530	620
Noise (dbA)	71	74
Filter cleaning	Fully automatic jet pulse filter cleaning
Filter Type	PTFE polyester coated HEPA filter
Filter area (c㎡)	3.5
Filter capacity	0.3um >99.5%
Size (mm)	640X1230X1600
Weight (kg)	200
